2.3.6. DataMixer

Fig. 2.63 The DataMixer extension allowing to mix/process unrelated data to be used as a brand new source of data!

2.3.6.1. Introduction

When dealing with PyMoDAQ you may be frustrated because you cannot easily customize the behaviour of the modules. In particular the DAQ_Viewer module grab raw data and except by the use of regions of interest you cannot really post-process those data. In fact there are solutions but they are quite complex especially if one want to do regular and often varying post-processing. These solutions are:

to create another plugin inheriting from the standard one and doing the post-processing in the reimplemented grab_data method. Here you can process the data from only one detector module and you don’t have access to the regions of interest
create an extension to perform the post-processing by capturing all the exported data from the Dashboard. But then you cannot use that to plot live data during a scan.

Those solutions both have limitations, those are what the DataMixer will solve!

The DataMixer allows you to:

do operations between unrelated data (that is from various detectors), either raw or from ROI or more generally post-process the generated data from the DashBoard
emulates a virtual DAQ_Viewer module that seems to grab data out of the DataMixer, hence allowing those processed data to be used in any DashBoard extension, for instance the DAQ_Scan!

2.3.6.2. Usage

2.3.6.2.1. The models or how to tailor the post-processing

Models are classes allowing to customize the post-processing. They have been introduced quite a long time ago by the PID Module and are heavily used by the optimizing Bayesian and Adaptive modules. They are therefore also used in the DataMixer to perform custom tasks. But they are still python classes one has to write for each postprocessing one want to try. They are therefore okay if you’re going to often use them or if they are general enough to be used in various situations. The tow models shipped with the extension are of the last kind. The first is the Gaussian fit model allowing to fit 1D data by Gaussians. The second allows you to define in a text box the mathematical expressions you want to perform between you raw data, see The Equation Model.

2.3.6.2.2. The Equation Model

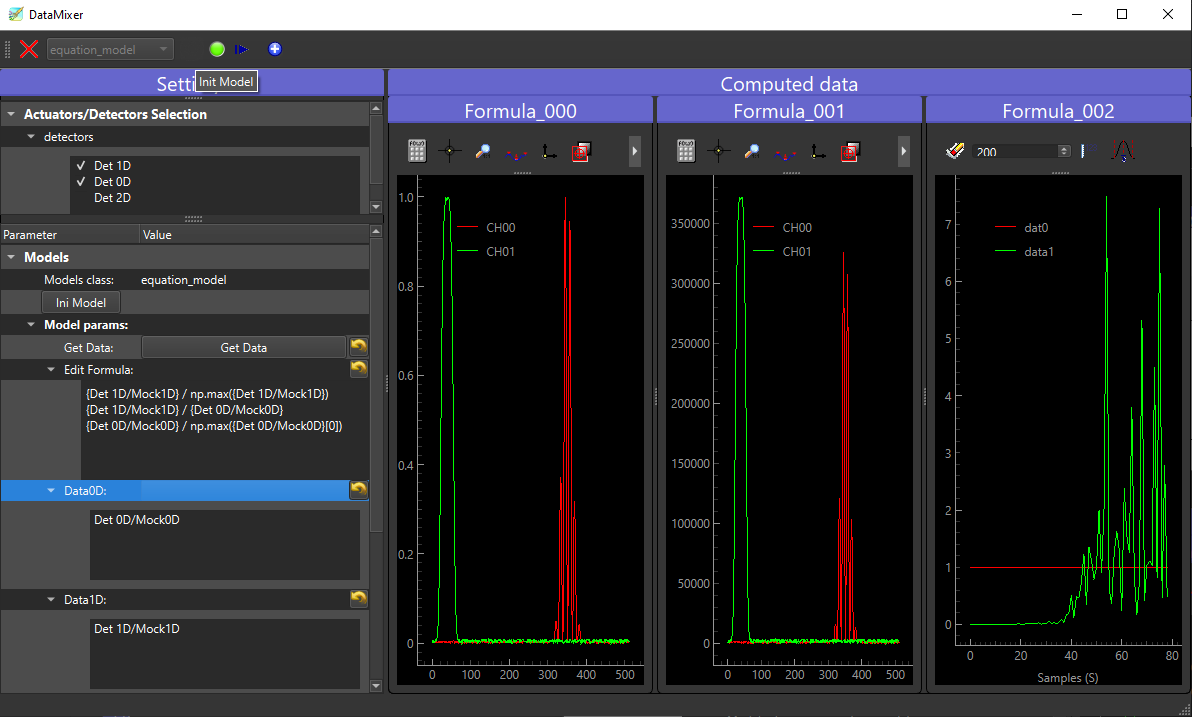

equation model gui — Fig. 2.64 The DataMixer GUI with the initialized Equation model!

Figure Fig. 2.64 shows the DataMixer GUI after the equation model has been initialized. The left panel is for the settings while the right one displays processed data. You first have to select your model (its specific settings will be displayed when chosen) and initialize it. Then you can select the detectors (from the DashBoard) whose data you want to use in the post-processing. All the available DataWithAxes (dwa) generated PyMoDAQ data will be displayed in the settings (either raw or from ROI) once you press the Get Data button. You can then copy/paste them in the Edit Formula area. You’ll have to write them between curly brackets for the parser to interpret them as the full dwa object. Dwa can handle operations between them such as regular addition, substraction… but are also compatible with most of the numpy functions such as np.sum, np.abs, … If you find an error while trying to use a numpy function, it’s probably because it is not yet possible to use it, open an issue and it will be done! Finally each line/operation in the edit area, will be interpreted as a Dwa and every time you press the snap button the resulting dwa will be plotted in dedicated viewer panel (they are three of them in the case of figure Fig. 2.64.

2.3.6.2.3. The Gaussian fit model

The Gaussian fit model is a bit more simple, it will try to fit every 1D data you selected… It’s more of an example of a custom model than a versatile one…

2.3.6.3. Emulating a virtual detector

Alright you performed the super, crazy, Nobel prize winning post-processing, so what? The next step is to create a virtual detector in the Dashboard generating data from the DataMixer extension. Because those post-processed data now will seem to come from the DashBoard, all the other extensions will be able to use it. With the DAQ_scan you could now look at live post-process data while scanning!!! For this to happen just press the plus button and a new DAQ_Viewer will appear in the Dashboard!!

2.3.6.4. Example of code for a Model

class DataMixerModelEquation(DataMixerModel):
    params = [
        {'title': 'Get Data:', 'name': 'get_data', 'type': 'bool_push', 'value': False,
         'label': 'Get Data'},
        {'title': 'Edit Formula:', 'name': 'edit_formula', 'type': 'text', 'value': ''},
        ...
    ]

    def ini_model(self):
        self.model_saver_loader = ConfigSaverLoader(self.settings, self.data_mixer.datamixer_config,
                                                    base_path=[self.__class__.__name__])
        self.show_data_list()
        self.model_saver_loader.load_config()

    def update_settings(self, param: Parameter):
        if param.name() == 'get_data':
            self.show_data_list()
        elif param.name() == 'edit_formula':
            self.model_saver_loader.save_config(param)

    def process_dte(self, dte: DataToExport):
        formulae = split_formulae(self.get_formulae())
        dte_processed = DataToExport('Computed')
        for ind, formula in enumerate(formulae):
            try:
                dwa = self.compute_formula(formula, dte,
                                           name=f'Formula_{ind:03.0f}')
                dte_processed.append(dwa)
            except Exception as e:
                logger.exception(f'{str(e)}')
        return dte_processed

    def get_formulae(self) -> str:
        """ Read the content of the formula QTextEdit widget"""
        return self.settings['edit_formula']

    def show_data_list(self):
        ...


    def compute_formula(self, formula: str, dte: DataToExport,
                        name: str) -> DataWithAxes:
        """ Compute the operations in formula using data stored in dte

        Parameters
        ----------
        formula: str
            The mathematical formula using numpy and data fullnames within curly brackets
        dte: DataToExport
        name: str
            The name to give to the produced DataWithAxes

        Returns
        -------
        DataWithAxes: the results of the formula computation
        """
        formula_to_eval, names = replace_names_in_formula(formula)
        dwa = eval(formula_to_eval)
        dwa.name = name
        return dwa

As you see, to be valid (and seen by PyMoDAQ), the model should inherit the DataMixerModel base class defining internal mechanisms but also exposing the interface and the methods you have to reimplement:

ini_model: will be called after you clicked the ini model button. Place here whatever should be done. Here one create a ConfigSaverLoader that will cache and load the last formula you entered. Data will also be probed from the selected detector (if any)
update_settings: will be called whenever you change one of the model settings.
process_dte: will be called whenever you press the snap button.

Note

For a model to be “seen” by PyMoDAQ either place it in the pymodaq.extensions.data_mixer.models module or any models module/folder of a PyMoDAQ plugin.
